Rumah > Produk >

Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement

Name: Simple Portable Digital Ground Resistance Tester for Accurate Earth Resistance Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhdj706
Price: 440.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an Shaanxi Tiongkok
Nama merek:	XZH TEST
Sertifikasi:	ISO CE
Nomor model:	Xhdj706

Informasi Rinci

Tempat asal:

Xi'an Shaanxi Tiongkok

Nama merek:

XZH TEST

Sertifikasi:

ISO CE

Nomor model:

Xhdj706

Modus Pengukuran:

Tegangan Bumi / Resistansi Bumi

rentang pengukuran resistansi:

0～1999Ω

Kisaran pengukuran tegangan:

0～199.9V

Akurasi pengukuran resistensi:

±2%rdg untuk [20Ω] (Resolusi: 0,1Ω); ±2%rdg±3dgt untuk [200/2000Ω] (Resolusi: 1Ω)

Akurasi pengukuran tegangan:

± 1%rdg±4dgt

Catu daya:

Baterai 6×R6P(AA) 1,5V

Ukuran:

170(P)×120(L)×65(T) mm

Menyoroti:

High Light

Menyoroti:

Simple Ground Resistance Tester

Portable Earth Resistance Tester

Digital Ground Tester

Trading Information

Kuantitas min Order:

1SET

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

5-8 Hari Kerja

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

3000unit/tahun

Deskripsi Produk

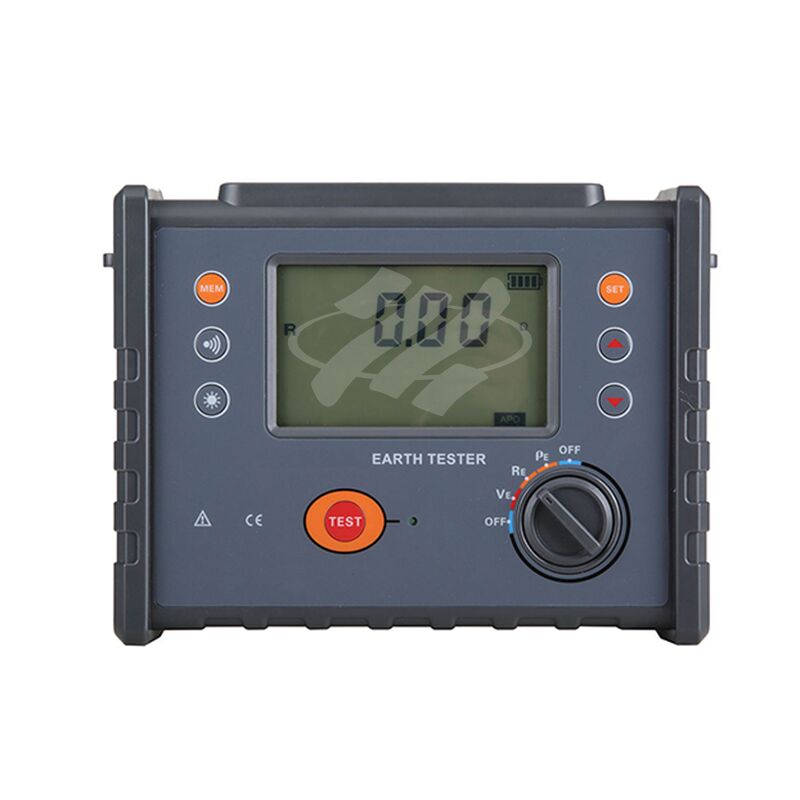

Product Overview

The XHDJ706 Earth Resistance Tester is designed for measuring the earth resistance of electrical equipment in power systems, meteorology, oil fields, construction, lightning protection and industrial sectors.

Performance Features

A 2mA measuring current prevents the earth leakage circuit breaker of the tested loop from tripping during earth resistance testing.
Equipped with simple test probes and capable of earth voltage measurement.
Activates a warning function when the auxiliary earth resistance value is excessively high; with resistance zero reset function.
Dust and water-proof design complies with IEC60529 (IP54) standard.

Technical Specifications

Measurement Mode	Earth Voltage / Earth Resistance
Resistance Measurement Range	0～1999Ω
Voltage Measurement Range	0～199.9V
Resistance Measurement Accuracy	±2%rdg for [20Ω] (Resolution: 0.1Ω); ±2%rdg±3dgt for [200/2000Ω] (Resolution: 1Ω)
Voltage Measurement Accuracy	±1%rdg±4dgt
Power Supply	6*R6P(AA) 1.5V batteries
Dimensions	170(L)120(W)65(H) mm
