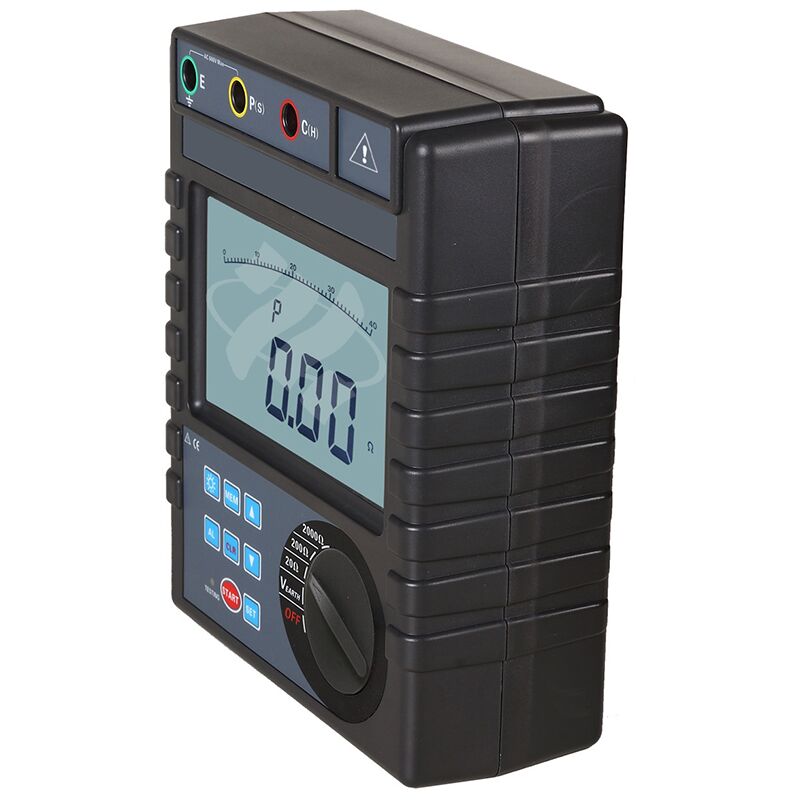

Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705

Name: Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhdj705
Price: 440.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an Shaanxi Tiongkok
Nama merek:	XZH TEST
Sertifikasi:	ISO CE
Nomor model:	Xhdj705

Informasi Rinci

Tempat asal:

Xi'an Shaanxi Tiongkok

Nama merek:

XZH TEST

Sertifikasi:

ISO CE

Nomor model:

Xhdj705

Fungsi inti:

Mampu melakukan pengukuran resistansi bumi, pengukuran tegangan bumi, dan pengukuran resistansi bern

Konfigurasi Catu Daya:

Didukung oleh DC 9V (6 buah baterai 1.5V R14S), dengan waktu siaga terus menerus yang super lama yai

Skema Pengukuran:

Mendukung pengukuran 3 kabel, pengukuran 2 kabel, dan menampilkan nilai rata-rata, nilai maksimum, d

Prinsip Pengujian Ketahanan Bumi:

Mengadopsi metode kutub variabel arus terukur, dengan arus pengukuran maksimum 3mA dan frekuensi ker

Mode Pengujian Tegangan Bumi:

Mengadopsi mode perbaikan nilai rata-rata; dilengkapi dengan layar LCD besar 4 digit untuk pembacaan

Rentang & Akurasi Ketahanan Bumi:

Rentang pengukuran 0,01Ω～2000Ω, akurasi pengukuran ±1% pembacaan ±3 digit, rasio resolusi 0,01Ω

Menyoroti:

High Light

Menyoroti:

Liquid Crystal Display Ground Resistance Tester

Portable Earth Resistance Tester

High Precision Ground Tester

Trading Information

Kuantitas min Order:

1SET

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

5-8 Hari Kerja

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

3000unit/tahun

Deskripsi Produk

Portable Ground Resistance Tester with Liquid Crystal Display for High Precision Earth Resistance Measurement

Product Overview

The XHDJ705 Digital Earth Resistance Tester is a professional measuring instrument independently designed and manufactured for field-based earth resistance detection. It boasts wide applicability and can be used to measure the earth resistance of various facilities including power grids, meteorological equipment, oilfield installations, construction projects, lightning protection systems and industrial electrical devices.

Performance Features

Engineered with advanced digital circuit and microprocessor control technologies, this instrument supports both 3-wire and 2-wire standard measurement methods for earth resistance. It features a proprietary line resistance calibration function that eliminates measurement errors caused by wire resistance, coupled with exceptional anti-electromagnetic interference performance and strong environmental adaptability to harsh working conditions. These core advantages ensure the instrument maintains high measurement accuracy, outstanding stability and reliable operation throughout long-term service.

Technical Parameters

Core Functions	Capable of earth resistance measurement, earth voltage measurement and low-value resistance measurement to meet diversified testing demands
Power Supply Configuration	Powered by DC 9V (6 pieces of 1.5V R14S batteries), with a super-long continuous standby time of 300 hours to support long-term field work
Measurement Schemes	Supports 3-wire measurement, 2-wire measurement, and displays average value, maximum value and minimum value of test results
Earth Resistance Testing Principle	Adopts rated current variable pole method, with maximum measurement current of 3mA and working frequency of 820Hz
Earth Voltage Testing Mode	Measuring range 0.01Ω～2000Ω, measurement accuracy ±1% reading ±3 digits, resolution ratio 0.01Ω
Earth Resistance Range & Accuracy	Measuring range AC 0～600V, measurement accuracy ±1% reading ±3 digits, resolution ratio 1V
Earth Voltage Range & Accuracy	Earth voltage measurement: 3 times per second; Earth resistance measurement: 5 seconds per measurement
Measurement Efficiency	Equipped with RS232 interface to upload stored data to computer for archiving and printing; supports 400 groups of data storage, and the flashing "FULL" icon prompts that the memory is full
Data Communication & Storage	Operating temperature range -10℃～40℃, relative humidity below 80%RH (no condensation)
Operating Environment Requirements

1. Robust Brand Strength:** Leveraging the extensive scientific research resources of universities in Xi'an, Xi'an Xuzhihui Electromechanical has dedicated years to deep specialization in the field of power testing equipment. Integrating R&D, manufacturing, sales, and service, our products have undergone rigorous market scrutiny and enjoy a reputation for reliability that is truly worthy of trust.
2. Industry-Leading Technology:** The XHDJ705 incorporates advanced digital circuitry and sophisticated anti-interference technology. Compared to traditional grounding testers, it offers faster testing speeds, greater data accuracy, and superior stability, perfectly meeting the intelligent and automated demands of modern power testing applications.

3. Exceptional Cost-Effectiveness:** Operating on a direct-from-manufacturer sales model eliminates intermediary channels, allowing us to offer more accessible pricing without compromising on quality. By striking an optimal balance between product performance and procurement costs, it stands as the preferred choice for enterprises and testing institutions seeking to reduce expenses and enhance operational efficiency.

4. Comprehensive Service Assurance:** From product selection and operational training to after-sales maintenance and technical upgrades, Xi'an Xuzhihui provides a seamless, one-stop service experience—ensuring that our customers can purchase with confidence and operate with complete peace of mind.
