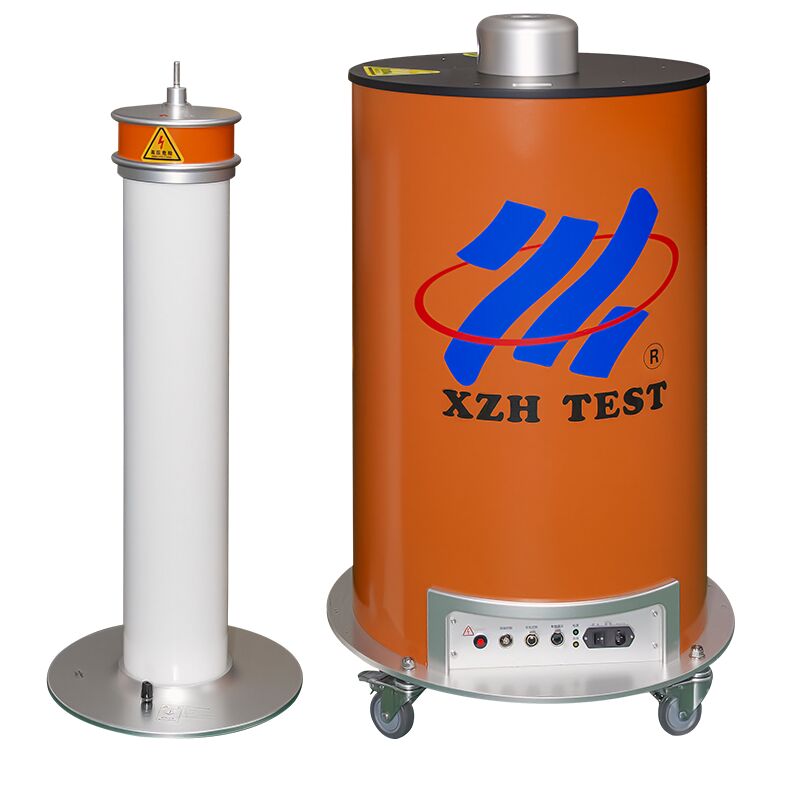

LCR Damped Oscillation Principle Cable Fault Locator
LCR Damped Oscillation Principle Cable Fault Locator
  • LCR Damped Oscillation Principle Cable Fault Locator

LCR Damped Oscillation Principle Cable Fault Locator

Rincian produk:
Tempat asal: Xi'an Shaanxi Tiongkok
Nama merek: XZH TEST
Sertifikasi: ISO CE
Nomor model: XHOW560
Informasi Rinci
Tempat asal:
Xi'an Shaanxi Tiongkok
Nama merek:
XZH TEST
Sertifikasi:
ISO CE
Nomor model:
XHOW560
Menyoroti:

High Light

Menyoroti:

LCR damped oscillation principle Cable Fault Locator

,

Comprehensive Diagnostic System Cable Insulation

,

Cable Insulation Diagnostic System

Trading Information
Kuantitas min Order:
1set
Kemasan rincian:
Kemasan kayu
Waktu pengiriman:
5-8 hari kerja
Syarat-syarat pembayaran:
T/T
Menyediakan kemampuan:
3000unit/tahun
Deskripsi Produk
XHOW560
Cable Insulation Comprehensive Diagnostic System, based on the LCR damped oscillation principle, conducts overall assessment and analysis of cable insulation status after completing DC cable charging.
Performance characteristics
The XHOW560 cable insulation comprehensive diagnostic system uses a built-in high-voltage reactor and a high-voltage real-time solid-state switch to generate a damped oscillating voltage wave with the test cable. This applies a sinusoidal voltage wave, close to the power frequency, to the test cable, exciting discharge signals at potential defects and allowing for the location and assessment of the cable insulation condition. Based on VLF ultra-low frequency voltage detection of cable insulation dielectric loss, it provides a comprehensive evaluation and analysis of the cable insulation condition.

Technical Specifications

★ DAC Output: 30/60kV 20-500Hz

★ VLF Output: 30/60kV 0.05, 0.1, 0.5Hz

★ DC Output: 0-30/60kV

★ Partial Discharge Test: 5pC-10nC Resolution: 1pC

★ Partial Discharge Bandwidth: 100-500kHz

★ Partial Discharge Positioning: 100kHz-20MHz

★ Resolution: 0.01%

LCR Damped Oscillation Principle Cable Fault Locator 0

Tag:

High Voltage Cable Fault Locator,

High Voltage Pulse Generator,

Portable Cable Fault Locator
