Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display

Name: Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZ1020
Price: 1,050.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an ShanXi Tiongkok
Nama merek:	XZH TEST
Sertifikasi:	ISO CE
Nomor model:	XHZ1020

Informasi Rinci

Tempat asal:

Xi'an ShanXi Tiongkok

Nama merek:

XZH TEST

Sertifikasi:

ISO CE

Nomor model:

XHZ1020

Menyoroti:

High Light

Menyoroti:

50A Transformer DC Resistance Tester

7-inch DC Resistance Tester

Industrial-Level Resistance Tester

Trading Information

Kuantitas min Order:

1set

Kemasan rincian:

Kemasan kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

3000unit/tahun

Deskripsi Produk

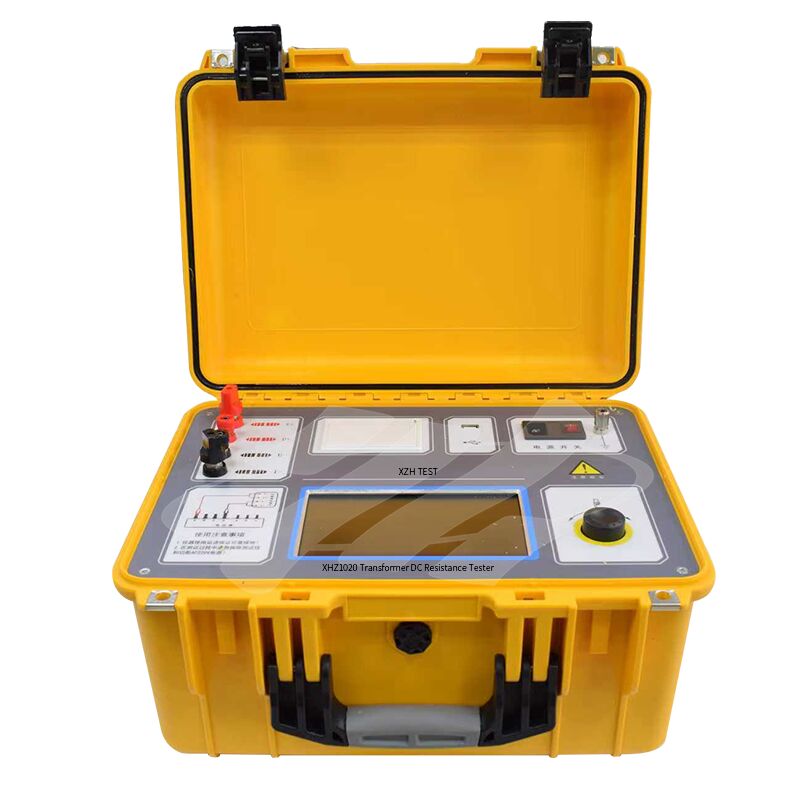

XHZ1020 Transformer DC Resistance Tester

The Transformer DC Resistance Tester is a high-performance industrial instrument designed for accurate measurement of transformer winding resistance. Featuring a 50A test current and 7-inch display, this professional-grade equipment delivers reliable results for maintenance and quality control applications.

As transformer is the core equipment in power system, its long-term reliable operation is of high significance to the stability and reliability of the whole system.

Key Features

50A test current capacity for precise measurements
7-inch industrial-grade display for clear data visualization
Robust construction for demanding industrial environments
Accurate DC resistance measurement for transformer windings
Professional-grade testing solution for maintenance teams

Technical Indicators

Model Type	50A/40A model	20A model
Output Current	50A/40A,20A,10A,5A,1A,0.2A,10mA,<1mA	20A,10A,5A,1A,0.2A,10mA,<1mA
Measurement Range	Gear 50A 75uΩ～0.4Ω Gear 40A 0.1mΩ～0.5Ω Gear 20A 0.5mΩ～ 1 Ω Gear 10A 1.0mΩ～ 2 Ω Gear 5A 10 mΩ～ 4 Ω Gear 1A 0.1Ω～ 20Ω Gear 0.2A 1.0Ω～ 100Ω Gear 10mA 50Ω～ 2kΩ Gear <1mA 500Ω～ 25kΩ
Accuracy	±(reading×0.2%+2)

Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display 0

20A Model

Industrial-Level 50A Transformer DC Resistance Tester with 7-inch Display 1
