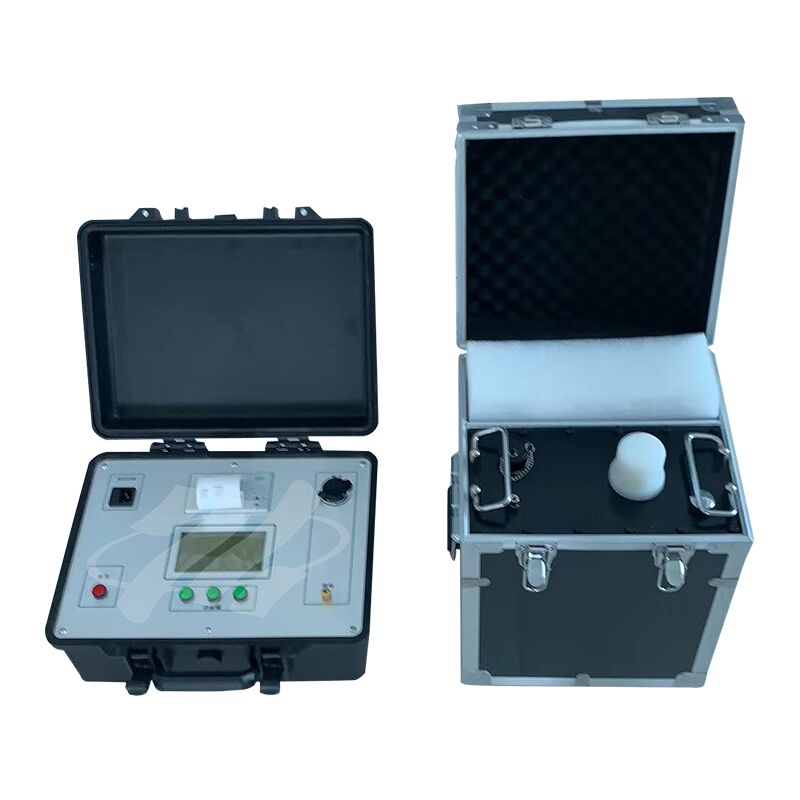

Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument

Name: Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Seri XHDP
Price: 7,970.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an, Shaanxi, Cina
Nama merek:	XZH TEST
Sertifikasi:	ISO,CE
Nomor model:	Seri XHDP

Informasi Rinci

Tempat asal:

Xi'an, Shaanxi, Cina

Nama merek:

XZH TEST

Sertifikasi:

ISO,CE

Nomor model:

Seri XHDP

Nilai Keluaran:

Tegangan 30kV/50kV/80kV

Presisi Pengukuran:

Frekuensi Output Opsional:

0,1Hz, 0,05Hz, 0,02Hz

Beban Maksimum:

1,1μF (0,1Hz), 2,2μF (0,05Hz), 5,5μF (0,02Hz)

Deviasi Tegangan Puncak (Positif/Negatif):

≤3%

Tingkat distorsi bentuk gelombang:

≤5%

Menyoroti:

High Light

Menyoroti:

Industrial VLF Hipot Tester

AC DC Hipot Tester with Tan Delta

Integrated Tan Delta Measuring Instrument

Trading Information

Kuantitas min Order:

1 buah

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

8-10 hari

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

Product Introduction

Designed with advanced digital frequency conversion and microcomputer control technology, the XHDP ultra-low frequency high-voltage equipment achieves full automation in boosting, step-down, data measurement and safety protection. With small overall dimension and light weight, it is equipped with a high-definition LCD screen for intuitive viewing. It can visually show output waveforms and generate printable test reports for on-site testing.

Key Advantages

All parameters including current, voltage and waveforms are collected directly at the high-voltage terminal.
Fast over-current and over-voltage protection, with operation reaction time less than 20 milliseconds.
Built-in high-low voltage closed-loop negative feedback design, ensuring stable output without capacitive voltage rise.

Specification Data

Rated Output: 30kV/50kV/80kV, Measurement Precision: 3%
Optional Output Frequencies: 0.1Hz, 0.05Hz, 0.02Hz
Maximum Load: 1.1μF (0.1Hz), 2.2μF (0.05Hz), 5.5μF (0.02Hz)
Peak Voltage Deviation (Positive/Negative): ≤3%
Waveform Distortion Rate: ≤5%
Working Conditions: Ambient Temperature -10℃ to +40℃, Relative Humidity ≤85%
Input Power: AC 220V±5%, 50Hz
