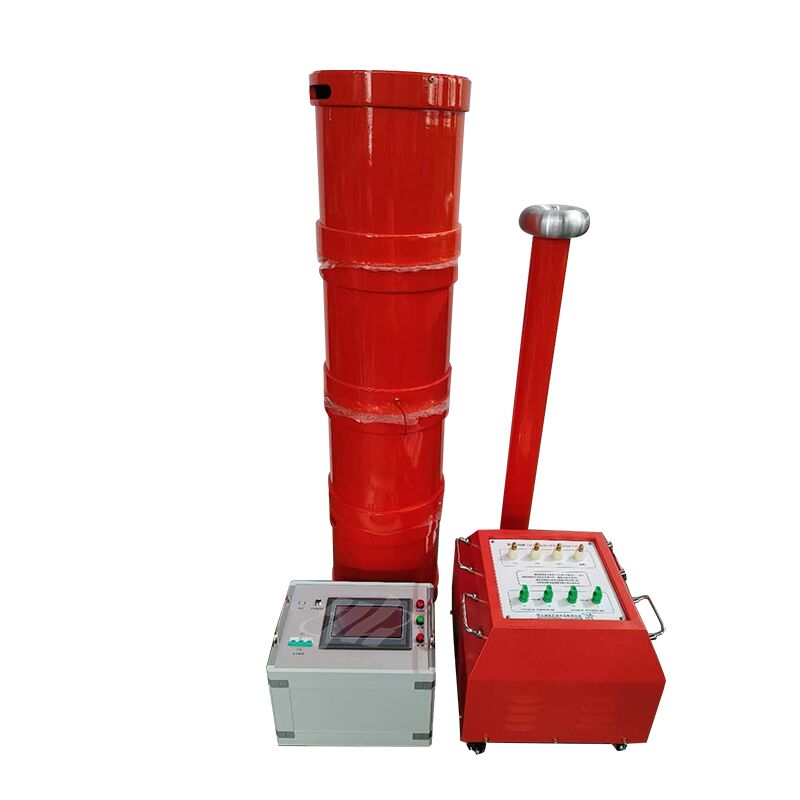

Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Name: Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-135/108
Price: 7,970.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an, Shaanxi, Cina
Nama merek:	XZH TEST
Sertifikasi:	ISO,CE
Nomor model:	XHBP-135/108

Informasi Rinci

Tempat asal:

Xi'an, Shaanxi, Cina

Nama merek:

XZH TEST

Sertifikasi:

ISO,CE

Nomor model:

XHBP-135/108

Tegangan output terukur:

Maks 500kV (AC RMS)

Frekuensi Keluaran:

20 hingga 300Hz

Bentuk gelombang tegangan resonansi:

Gelombang sinus murni, tingkat distorsi <1,0%

Kapasitas Uji:

maks 1000kVA

Pengoperasian berkelanjutan dengan kekuatan penuh:

60 menit

Menyoroti:

High Light

Menyoroti:

HV insulation test apparatus

Resonance experimental power tester

AC DC hipot test equipment

Trading Information

Kuantitas min Order:

1 buah

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

8-10 hari

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

Product Overview

XHBP series variable frequency resonant test device comprises variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider as main parts. A rectifier silicon stack connected after the capacitive voltage divider enables DC withstand voltage testing of equipment.

Performance Features

Compact and lightweight reactors for the same voltage and capacity rating.
Low temperature rise under rated load.
Dry-type epoxy casting for high mechanical strength and good electrical insulation.
Variable frequency control power supply with large capacity margin, powerful protection, high-quality output waveform and stable performance.
Easy operation with multiple working modes.
Convenient on-site power access via 220V or 380V single-phase power.

Technical Parameters

Rated output voltage: 500kV max (AC RMS)
Output frequency: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, distortion rate <1.0%
Test capacity: 1000kVA max
Full-power continuous operation: 60 minutes
Quality factor: 30 to 90
Frequency regulation: 0.1Hz sensitivity, <0.05% instability
Working power: 380/220V±15%, 50Hz±5%
