Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Name: Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYB-10/100
Price: 7,970.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an, Shaanxi, Cina
Nama merek:	XZH TEST
Sertifikasi:	ISO,CE
Nomor model:	XHYB-10/100

Informasi Rinci

Tempat asal:

Xi'an, Shaanxi, Cina

Nama merek:

XZH TEST

Sertifikasi:

ISO,CE

Nomor model:

XHYB-10/100

Menyoroti:

High Light

Menyoroti:

Automatic tuning resonance tester

Series resonance apparatus with protection

AC DC hipot tester

Trading Information

Kuantitas min Order:

1 buah

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

8-10 hari

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

Product Overview

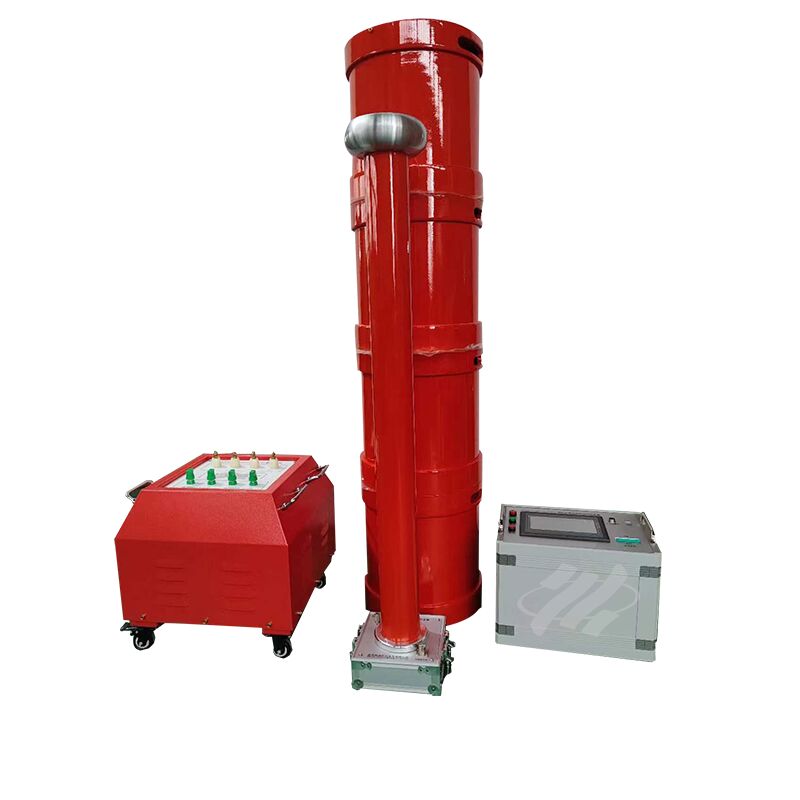

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights

Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
Low temperature rise during rated load operation, enhancing the service life of components.
Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
Multiple working modes available, realizing simple and efficient operation.
220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters

Rated Output Voltage: ≤500kV (AC RMS)
Output Frequency: 20～300Hz
Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
Test Capacity: ≤1000kVA
Continuous Working Time (Full Power): 60min
Quality Factor: 30～90
Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
Working Power Supply: 380/220V±15%/50Hz±5%
