Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Name: Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-44/44
Price: 7,970.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Xi'an, Shaanxi, Cina
Nama merek:	XZH TEST
Sertifikasi:	ISO,CE
Nomor model:	XHBP-44/44

Informasi Rinci

Tempat asal:

Xi'an, Shaanxi, Cina

Nama merek:

XZH TEST

Sertifikasi:

ISO,CE

Nomor model:

XHBP-44/44

Masukan tegangan lebar:

380/220V±15%/50Hz±5%

Pengaturan frekuensi presisi:

Sensitivitas 0,1Hz, ketidakstabilan <0,05%.

Kisaran faktor kualitas:

30～90

Pengoperasian berkelanjutan dengan kekuatan penuh:

60 menit

Kapasitas pengujian maksimal:

1000kva

Bentuk gelombang tegangan resonansi:

Gelombang sinus murni, distorsi bentuk gelombang <1,0%

Menyoroti:

High Light

Menyoroti:

lightweight resonance experimental apparatus

low power consumption hipot tester

high precision AC DC tester

Trading Information

Kuantitas min Order:

1 buah

Harga:

Dapat dinegosiasikan

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

8-10 hari

Syarat-syarat pembayaran:

T/T

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

Product Introduction

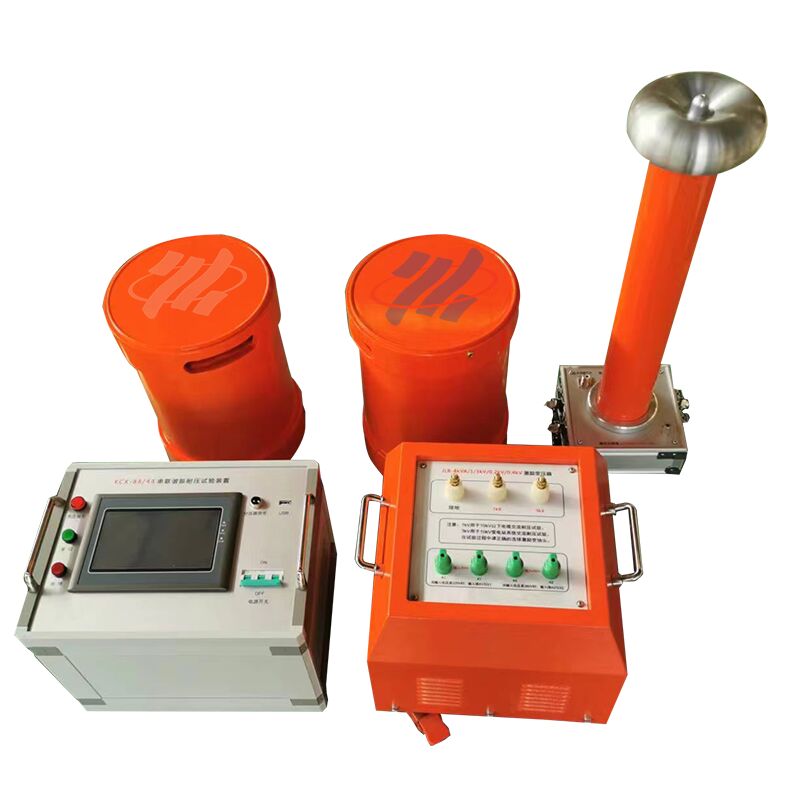

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits

Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
Low heat generation under rated load, ensuring long-term stable operation.
Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
User-friendly operation with multiple customizable working modes to fit diverse testing demands.
Convenient on-site power supply via universal 220V or 380V single-phase power input.

Core Technical Parameters

Rated output voltage: Up to 500kV (AC RMS)
Output frequency range: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
Max test capacity: 1000kVA
Full-power continuous operation: 60 minutes
Quality factor range: 30～90
Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
Wide voltage input: 380/220V±15%/50Hz±5%
