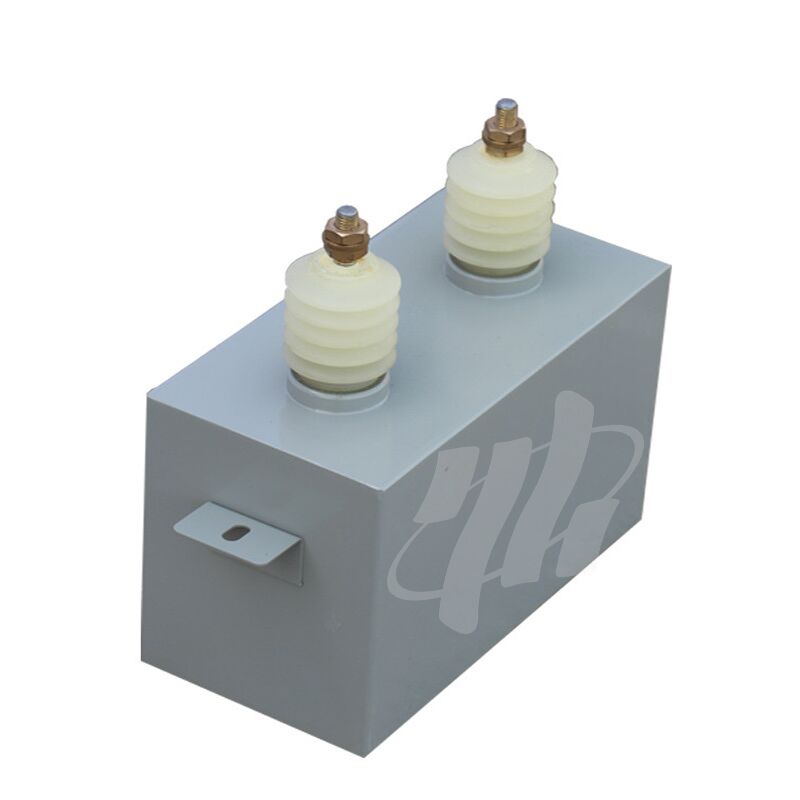

35kv 6UF : The Pulse Capacitor with Energy Storage

Name: 35kv 6UF : The Pulse Capacitor with Energy Storage
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-6/35
Price: 1,050.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	CINA
Nama merek:	XZH Test
Sertifikasi:	CE/ISO
Nomor model:	XHCC-6/35

Informasi Rinci

Tempat asal:

CINA

Nama merek:

XZH Test

Sertifikasi:

CE/ISO

Nomor model:

XHCC-6/35

Menyoroti:

High Light

Menyoroti:

35kv pulse capacitor

energy storage capacitor

cable fault locator capacitor

Trading Information

Kuantitas min Order:

1 buah

Kemasan rincian:

Kotak kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

T/t

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

XHCC-6/35

Overview

Pulse energy storage capacitors adopt imported film and employ a non-inductive winding structure, boasting excellent self-healing and explosion-proof properties. They are characterized by reliable construction, leak-proof design, pollution-free operation, moisture resistance, fire resistance, long service life, compact size, and lightweight.

Applications

Pulse energy storage capacitors store electrical energy charged by low-power power sources at specific time intervals. Upon demand, they rapidly release the stored energy within an extremely short period, generating high-intensity impulse current and power. These capacitors are primarily used in high-voltage impulse discharge testing, high-energy physics, oscillating circuits, geological prospecting, and other related fields.

Technical Parameters

Ambient Temperature	-20～+50℃
Capacitance Tolerance	±5%
Rated Capacitance	6uF
Rated Voltage Rating	35kV
Altitude	≤2000 meters, altitudes above 2000 meters will be specified separately

35kv 6UF : The Pulse Capacitor with Energy Storage 0

Precautions and Common Faults

1. Do not impact or knock the pulse energy storage capacitor, as this may damage the internal film.

2. When using the pulse energy storage capacitor, please read the instruction manual and capacitor label to prevent overvoltage use.

3. During use, pay attention to the voltage withstand capability and safe distance of the connecting wires.

4. After the test, the high-voltage end must be fully discharged first.

5. If abnormal noise occurs inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.

6. If bulges or protrusions appear on the capacitor casing, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.

After-Sales Service The instrument is covered by a one-year free warranty for product quality issues from the date of purchase, and lifetime maintenance and technical services are provided. If you find that the instrument is malfunctioning or has any faults, please contact us promptly so that we can arrange the most convenient and effective solution for you.

If you are interested in this type of equipment, please feel free to contact us. We also accept customized services.
