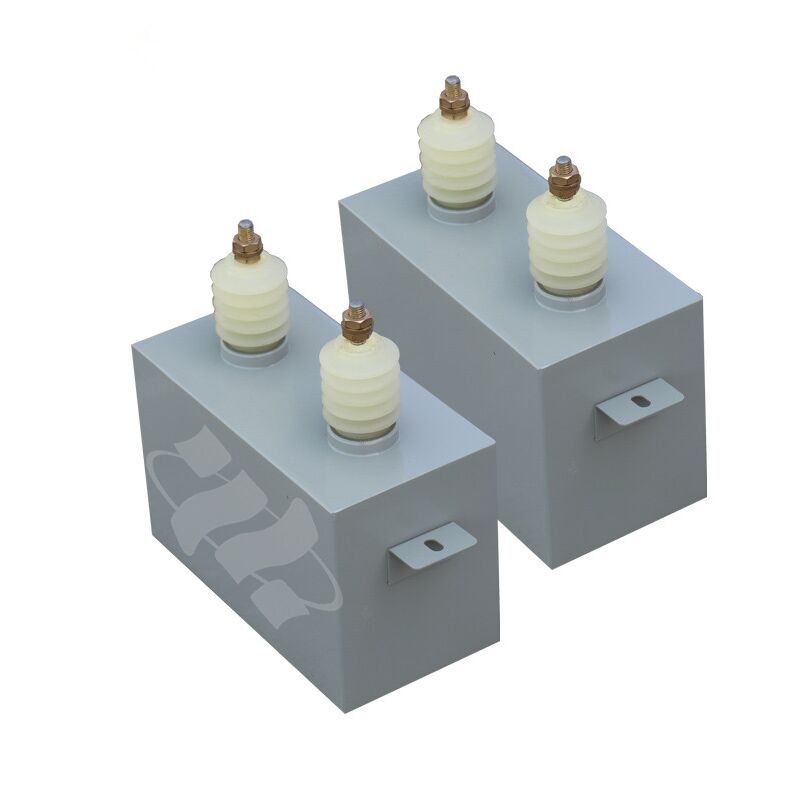

30kv 4UF Rapid-Charge Pulse Capacitor

Name: 30kv 4UF Rapid-Charge Pulse Capacitor
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-4/30
Price: 1,050.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	CINA
Nama merek:	XZH Test
Sertifikasi:	CE/ISO
Nomor model:	XHCC-4/30

Informasi Rinci

Tempat asal:

CINA

Nama merek:

XZH Test

Sertifikasi:

CE/ISO

Nomor model:

XHCC-4/30

Menyoroti:

High Light

Menyoroti:

30kv pulse capacitor

rapid-charge pulse capacitor

cable fault locator capacitor

Trading Information

Kuantitas min Order:

1unit

Kemasan rincian:

Kotak kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

T/t

Menyediakan kemampuan:

2000 unit/tahun

Deskripsi Produk

XHCC-4/30

Model NO.

XHCC-4/30

Weight

27kg

Rated Capacity

4UF

Rated Voltage

35kv

Transport Package

Wooden Case

Specification

28*24*36

Trademark

XZH TEST

Origin

Shaanxi

Product Description

The pulse capacitor is super cool! It takes in energy from a small power supply and holds onto it for a while. Then, when the moment is right, it lets go of all that energy super fast. This creates a powerful burst of current and a lot of energy. It's really useful in high - voltage impulse discharge tests, high - energy physics stuff, oscillation circuits, and even in geological exploration.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Model Description
Example: XHCC-4/35 pulse capacitor
1. 4--Rated capacitance 4uF
2. 35--Rated voltage level 35kV

N.o	model	Rated voltage	Rated capacity	Interpolar withstand voltage	Application
01	3/2000	3kV	2000uF	3.6kV	Impulse discharge
02	6.5/100	6.5kV	100uF	3.6kV	Impulse discharge
03	6.5/200	6.5kV	200uF	7.5 kV	Impulse discharge
04	6.5/500	6.5kV	500uF	7.5 kV	Impulse discharge
05	15/8	15kV	8uF	17.5 kV	Impulse discharge
06	15/8*2	15kV	8uF	17.5 kV	Impulse discharge
07	15/8*3	30kV	2uF	34.5 kV	Impulse discharge
08	35/2	35kV	2uF	39.5 kV	Impulse discharge
09	35/4	35kV	4uF	39.5 kV	Impulse discharge
10	30/4	30kV	4uF	34.5 kV	Impulse discharge
11	40/4	40kV	4uF	45 kV	Impulse discharge
12	40/6	40kV	6uF	45 kV	Impulse discharge
13	100/1	100kV	1uF	110 kV	Impulse discharge

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
