Factory Supplier Potable Power Cable Identifier Multiple Frequency to Identify

Name: Factory Supplier Potable Power Cable Identifier Multiple Frequency to Identify
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	CINA
Nama merek:	XZH Test
Sertifikasi:	CE/ISO
Nomor model:	XHSB505DS

Informasi Rinci

Tempat asal:

CINA

Nama merek:

XZH Test

Sertifikasi:

CE/ISO

Nomor model:

XHSB505DS

Menyoroti:

High Light

Menyoroti:

portable power cable identifier

multiple frequency cable locator

cable fault locator with warranty

Trading Information

Kuantitas min Order:

1unit

Kemasan rincian:

Kotak kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

T/t

Menyediakan kemampuan:

2000unit/tahun

Deskripsi Produk

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

This product offers live and de - energized cable identification, AC current and voltage testing. It includes a transmitter, a current clamp for transmission, a receiver, and a flexible current clamp for reception. The voltage range for cable testing is AC 0 - 600V (50Hz/60Hz), the AC current range is 0 - 5000A (50Hz/60Hz), and it can measure current frequencies from 45Hz to 70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen

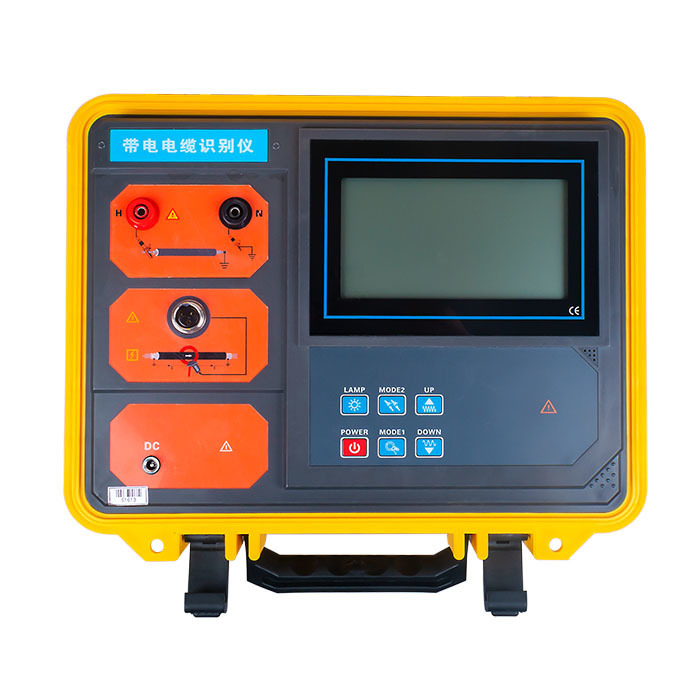

Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
