XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes

Name: XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhgx507
Price: 1,662.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Cina
Nama merek:	XZH TEST
Sertifikasi:	CE/ISO
Nomor model:	Xhgx507

Informasi Rinci

Tempat asal:

Cina

Nama merek:

XZH TEST

Sertifikasi:

CE/ISO

Nomor model:

Xhgx507

Menyoroti:

High Light

Menyoroti:

intelligent cable pipeline tester

cable route tracer with multiple detection modes

XHGX507C pipeline tester with warranty

Trading Information

Kuantitas min Order:

1 unit

Kemasan rincian:

kemasan kayu

Waktu pengiriman:

5-8 hari kerja

Syarat-syarat pembayaran:

T/t

Supply Ability:

1000 units per year

Deskripsi Produk

XHGX507C Intelligent Cable Pipeline Tester with Multiple Detection Modes

The XHGX507C intelligent cable pipeline comprehensive tester is a high-performance path detection instrument designed for underground utility detection and maintenance. This versatile tool combines pipeline path detection, cable identification, and fault finding capabilities in one system.

Key Features

Multiple detection modes: Classic positioning, wire cruise, and signal distortion measurement modes
Advanced display: Compass, direction and signal amplitude display for intuitive pipeline location
360° detection: Continuous display of depth, current and relative pipeline position
Signal analysis: Simultaneous peak and trough waveform display for distortion measurement
Current direction determination: Eliminates adjacent line interference and prevents tracking errors
Digital processing: High-precision sampling with strong anti-interference capabilities
Multiple frequencies: 11 active and 3 passive detection frequencies
Versatile transmitter: Multiple signal output modes with digital amplified power

Cable Identification

Identification Method	Flexible caliper intelligent identification
Cable Capacity	1 to 20 cables can be calibrated
Calibration Range	75% to 135% of calibration value
Direction Requirement	Transmitting clamp, receiving clamp and loading signal must be in same direction

Technical Specifications

Detection Range (Direct)	0Ω~8kΩ loop resistance (0-20km cable length)
Detection Range (Coupling)	0Ω~1kΩ loop resistance (0-6cm cable length)
Display	4.3-inch LCD color screen (high brightness)
Touch Interface	Capacitive touch
Dimensions	350mm × 155mm × 700mm (L×W×H)
Weight	Approximately 2kg
Connections	Type-C USB port, aviation socket
Coil Inner Diameter	φ200mm (custom sizes available)
Operating Conditions	-10ºC to 40ºC; ≤80% RH
Storage Conditions	-10ºC to 50ºC; ≤95% RH (no condensation)
Safety Standards	IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, pollution degree 2

System Components

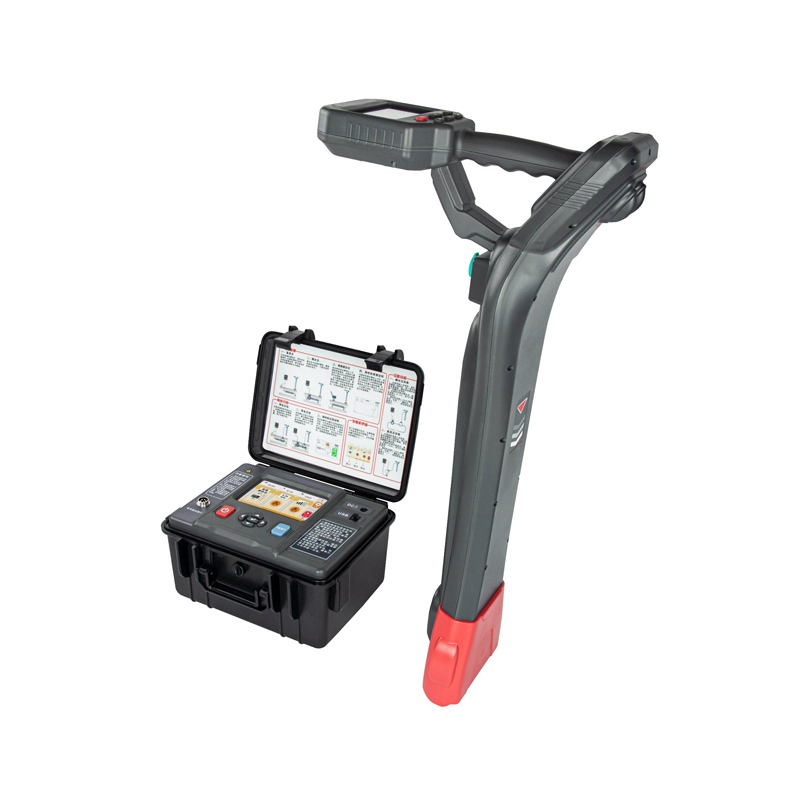

Complete system includes transmitter, transmitting current clamp, receiver, receiving flexible current clamp, connecting test line, and optional A-frame.

Applications

Ideal for path detection, pipeline census, and depth measurement of underground metal pipelines and cables. Essential for pipeline maintenance, municipal planning, power supply departments, and construction projects in trenchless environments.
